QUESTION 1
After the implementation of several different types of switches from different vendors, a network engineer notices that directly connected devices that use Cisco Discovery Protocol are not visible. Which vendor-neutral protocol could be used to resolve this issue?
A. Local Area Mobility
B. Link Layer Discovery Protocol
C. NetFlow
D. Directed Response Protocol
Correct Answer: B

Explanation:
The Link Layer Discovery Protocol (LLDP) is a vendor-neutral link layer protocol in the Internet Protocol Suite used by network devices for advertising their identity, capabilities, and neighbors on an IEEE 802 local area network, principally wired Ethernet. LLDP performs functions similar to several proprietary protocols, such as the Cisco Discovery Protocol (CDP).

QUESTION 2
Several new switches have been added to the existing network as VTP clients. All of the new switches have been configured with the same VTP domain, password, and version. However, VLANs are not passing from the VTP server (existing network) to the VTP clients. What must be done to fix this?
A. Remove the VTP domain name from all switches with “null” and then replace it with the new domain name.
B. Configure a different native VLAN on all new switches that are configured as VTP clients.
C. Provision one of the new switches to be the VTP server and duplicate information from the existing network.
D. Ensure that all switch interconnects are configured as trunks to allow VTP information to be transferred.
Correct Answer: D

Explanation:
VTP allows switches to advertise VLAN information between other members of the same VTP domain. VTP allows a consistent view of the switched network across all switches. There are several reasons why the VLAN information can fail to be exchanged. Verify these items if switches that run VTP fail to exchange VLAN information:
– VTP information only passes through a trunk port. Make sure that all ports that interconnect switches are configured as trunks and are actually trunking. Make sure that if EtherChannels are created between two switches, only Layer 2 EtherChannels propagate VLAN information.
– Make sure that the VLANs are active in all the devices.
– One of the switches must be the VTP server in a VTP domain. All VLAN changes must be done on this switch in order to have them propagated to the VTP clients. ·The VTP domain name must match and it is case sensitive. CISCO and cisco are two different domain names.
– Make sure that no password is set between the server and client. If any password is set, make sure that the password is the same on both sides.

QUESTION 3
After implementing VTP, the extended VLANs are not being propagated to other VTP switches.
What should be configured for extended VLANs?
A. VTP does not support extended VLANs and should be manually added to all switches.
B. Enable VTP version 3, which supports extended VLAN propagation.
C. VTP authentication is required when using extended VLANs because of their ability to cause network instability.
D. Ensure that all switches run the same Cisco IOS version. Extended VLANs will not propagate to different IOS versions when extended VLANs are in use.
Correct Answer: B

Explanation:
– VTP version 1 and VTP version 2 do not propagate configuration information for extended- range VLANs (VLAN numbers 1006 to 4094). You must configure extended-range VLANs manually on each network device. 300-115 dumps
– VTP version 3 supports extended-range VLANs (VLAN numbers 1006 to 4094). If you convert from VTP version 3 to VTP version 2, the VLANs in the range 1006 to 4094 are removed from VTP control.

QUESTION 4

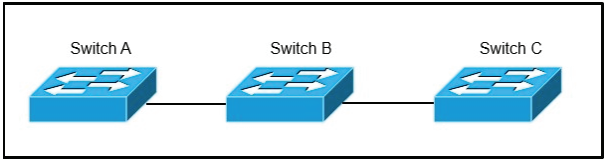

Refer to the exhibit.
300-115 dumps
Switch A, B, and C are trunked together and have been properly configured for VTP. Switch C receives VLAN information from the VTP server Switch A, but Switch B does not receive any VLAN information. What is the most probable cause of this behavior?
A. Switch B is configured in transparent mode.
B. Switch B is configured with an access port to Switch A, while Switch C is configured with a trunk port to Switch B.
C. The VTP revision number of the Switch B is higher than that of Switch A.
D. The trunk between Switch A and Switch B is misconfigured.
Correct Answer: A

Explanation:
VTP transparent switches do not participate in VTP. A VTP transparent switch does not advertise its VLAN configuration and does not synchronize its VLAN configuration based on received advertisements, but transparent switches do forward VTP advertisements that they receive out their trunk ports in VTP Version 2.

QUESTION 5
Refer to the exhibit.
300-115 dumps
Switch A, B, and C are trunked together and have been properly configured for VTP. Switch B has all VLANs, but Switch C is not receiving traffic from certain VLANs. What would cause this issue?
A. A VTP authentication mismatch occurred between Switch A and Switch B.
B. The VTP revision number of Switch B is higher than that of Switch A.
C. VTP pruning is configured globally on all switches and it removed VLANs from the trunk interface that is connected to Switch C.
D. The trunk between Switch A and Switch B is misconfigured.
Correct Answer: C

Explanation:
VTP pruning increases network available bandwidth by restricting flooded traffic to those trunk links that the traffic must use to reach the destination devices.
Without VTP pruning, a switch floods broadcast, multicast, and unknown unicast traffic across all trunk links within a VTP domain even though receiving switches might discard them. VTP pruning is disabled by default. VTP pruning blocks unneeded flooded traffic to VLANs on trunk ports that are included in the pruningeligible list. The best explanation for why switch C is not seeing traffic from only some of the VLANs, is that VTP pruning has been configured.

QUESTION 6
After the recent upgrade of the switching infrastructure, the network engineer notices that the port roles that were once “blocking” are now defined as “alternate” and “backup.” What is the reason for this change?
A. The new switches are using RSTP instead of legacy IEEE 802.1D STP.
B. IEEE 802.1D STP and PortFast have been configured by default on all newly implemented Cisco Catalyst switches.
C. The administrator has defined the switch as the root in the STP domain.
D. The port roles have been adjusted based on the interface bandwidth and timers of the new Cisco Catalyst switches.
Correct Answer: A

Explanation:
RSTP works by adding an alternative port and a backup port compared to STP. These ports are allowed to immediately enter the forwarding state rather than passively wait for the network to converge. 300-115 dumps
RSTP bridge port roles:
– Root port A forwarding port that is the closest to the root bridge in terms of path cost
– Designated port A forwarding port for every LAN segment
– Alternate port A best alternate path to the root bridge. This path is different than using the root port. The alternative port moves to the forwarding state if there is a failure on the designated port for the segment.
– Backup port A backup/redundant path to a segment where another bridge port already connects. The backup port applies only when a single switch has two links to the same segment (collision domain). To have two links to the same collision domain, the switch must be attached to a hub.
– Disabled port Not strictly part of STP, a network administrator can manually disable a port

QUESTION 7
An administrator recently configured all ports for rapid transition using PortFast. After testing, it has been determined that several ports are not transitioning as they should. What is the reason for this?
A. RSTP has been enabled per interface and not globally.
B. The STP root bridge selection is forcing key ports to remain in non-rapid transitioning mode.
C. STP is unable to achieve rapid transition for trunk links.
D. The switch does not have the processing power to ensure rapid transition for all ports.
Correct Answer: C

Explanation:
RSTP can only achieve rapid transition to the forwarding state on edge ports and on point-to- point links, not on trunk links. The link type is automatically derived from the duplex mode of a port. A port that operates in full-duplex is assumed to be point-to-point, while a half-duplex port is considered as a shared port by default. This automatic link type setting can be overridden by explicit configuration. In switched networks today, most links operate in full-duplex mode and are treated as point-to-point links by RSTP. This makes them candidates for rapid transition to the forwarding state.

QUESTION 8
Which technique automatically limits VLAN traffic to only the switches that require it?
A. access lists
B. DTP in nonegotiate
C. VTP pruning
D. PBR
Correct Answer: C

Explanation:
VTP pruning enhances network bandwidth use by reducing unnecessary flooded traffic, such as broadcast, multicast, unknown, and flooded unicast packets to only the switches that require it. VTP pruning increases available bandwidth by restricting flooded traffic to those trunk links that the traffic must use to access the appropriate network devices. By default, VTP pruning is disabled.

QUESTION 9
What effect does the mac address-table aging-time 180 command have on the MAC address- table?
A. This is how long a dynamic MAC address will remain in the CAM table.
B. The MAC address-table will be flushed every 3 minutes.
C. The default timeout period will be 360 seconds.
D. ARP requests will be processed less frequently by the switch.
E. The MAC address-table will hold addresses 180 seconds longer than the default of 10 minutes.
Correct Answer: A

Explanation:
You can configure the amount of time that an entry (the packet source MAC address and port that packet ingresses) remain in the MAC table.
To configure the aging time for all MAC addresses, perform this task:
Command Purpose
Step 1 switch# configure Enters configuration mode.
terminal
Step 2 switch(config)# mac- Specifies the time before an entry ages out address-table aging- and is discarded from the MAC address table. time seconds [vlan
The range is from 0 to 1000000; the default is vlan_id] 300 seconds. Entering the value 0 disables the MAC aging. 300-115 dumps If a VLAN is not specified, the aging specification applies to all VLANs.
This example shows how to set the aging time for entries in the MAC address table to 600 seconds (10 minutes):
switch# configure terminal
switch(config)# mac-address-table aging-time 600

QUESTION 10
While working in the core network building, a technician accidently bumps the fiber connection between two core switches and damages one of the pairs of fiber.
As designed, the link was placed into a non-forwarding state due to a fault with UDLD. After the damaged cable was replaced, the link did not recover. What solution allows the network switch to automatically recover from such an issue?
A. macros
B. errdisable autorecovery
C. IP Event Dampening
D. command aliases
E. Bidirectional Forwarding Detection
Correct Answer: B

Explanation:
There are a number of events which can disable a link on a Catalyst switch, such as the detection of a loopback, UDLD failure, or a broadcast storm. By default, manual intervention by an administrator is necessary to restore the interface to working order; this can be done by issuing shutdown followed by no shutdown on the interface. The idea behind requiring administrative action is so that a human engineer can intercede, assess, and (ideally) correct the issue. However, some configurations may be prone to accidental violations, and a steady recurrence of these can amount to a huge time sink for the administrative staff.
This is where errdisable autorecovery can be of great assistance. We can configure the switch to automatically re-enable any error-disabled interfaces after a specified timeout period. This gives the offending issue a chance to be cleared by the user (for example, by removing an unapproved device) without the need for administrative intervention.
